Автоклав стерилизатор с принтер Compact Line LFSS23AC 23 L class B
Описание
High-quality autoclaves
Lafomed is a brand of high-class autoclaves that have gained recognition in over 50 countries around the world. Autoclaves meet all standards and medical directives. These devices are characterized by low failure rate. Their microprocessors use the latest generation electronic modules. Lafomed autoclaves are characterized by high efficiency and durability, and their operation is simple and intuitive.
Top class autoclave
The Lafomed Compact Line autoclave is especially recommended for hospital departments, dentistry and ophthalmology, and for Biology Institutes conducting research projects. Perfect for hairdressing and beauty salons, tattoo studios, or aesthetic medicine salons. The device is intended for the sterilization of both medical and non-medical tools. Thanks to the cooperation of the technical departments of Lafomed and Activeshop, a device has been created that will satisfy the most demanding users. Top medical class B autoclave sterilization ensures full effectiveness and safety.
A functionality you will appreciate
It is a compact device that combines an 23 liter autoclave with a built-in thermal printer. It has LCD display and USB port, which allows you to connect a data carrier to save the results of the cycle. It has 10 fully automatic programs; 7 sterilization programs, 2 test programs and an autoclave cleaning program. In addition, it also has the user program function, which allows complete freedom in selecting parameters. It has an intuitive menu and the user-friendly interface is in English. The preheat and keep warm functions will show up to be very useful, especially when you need to do more programs and you don't want to wait for the device to heat upon starting each program. The Lafomed Compact Line autoclave is distinguished by the availability of quick sterilization programs with the possibility of controlling the drying time. The shortest sterilization program including drying takes only 7 minutes. The device has a built-in clean (distilled) water tank, which is used for sterilization, as well as a used water tank, with the possibility of drainage at the front of the device. Self-diagnosis system will effectively protect against damage and preserve the durability of the device. Additional security is provided by the double door lock system. What distinguishes it from other Lafomed autoclaves is the unusually large capacity of tanks for clean and used water - up to 2.5 liters! Thanks to this, you will not have to frequently add and empty water.
Automatic sterilization programs
| Sterilization program | Pressure | Total cycle time* |
| 121° Solid | 110 kPa | 23 min |
| 121° Porous | 110 kPa | 27 min |
| 121° Concave | 110 kPa | 30 min |
| 134° Solid | 210 kPa | 7 min |
| 134° Porous | 210 kPa | 11 min |
| 134° Concave | 210 kPa | 14 min |
| 135° Prions | 210 kPa | 29 min |
* Refers to the time after the chamber has warmed up.
Warranty 36 months
The Lafomed Compact Line autoclave is covered by a 36-month warranty. It is worth noting that the warranty is not dependent on the number of cycles used by the autoclave. This option applies to devices purchased from 17.05.2024. Additionally, a technical passport is included for free in the set.
Specification:
| Medical Class B | This is the highest class of autoclaves that allow the most effective sterilization of unpackaged and wrapped items, regardless of the type of instrument. |
| High Quality | Certified by ISO 13485 and CE 1023. It also meets European Standard BS EN 13060: 2014 + A1: 2018. |
| Capacity 23 L | The large capacity allows you to sterilize more tools and items. Perfect for dental practices, university facilities, hospital wards, or private clinics. |
| Built-in printer | Does not require ink thanks to thermal paper. |
| Sterilize instruments packed or unpacked | A Class B autoclave allows sterilization of both unwrapped instruments and wrapped instruments (massive or hollow). |

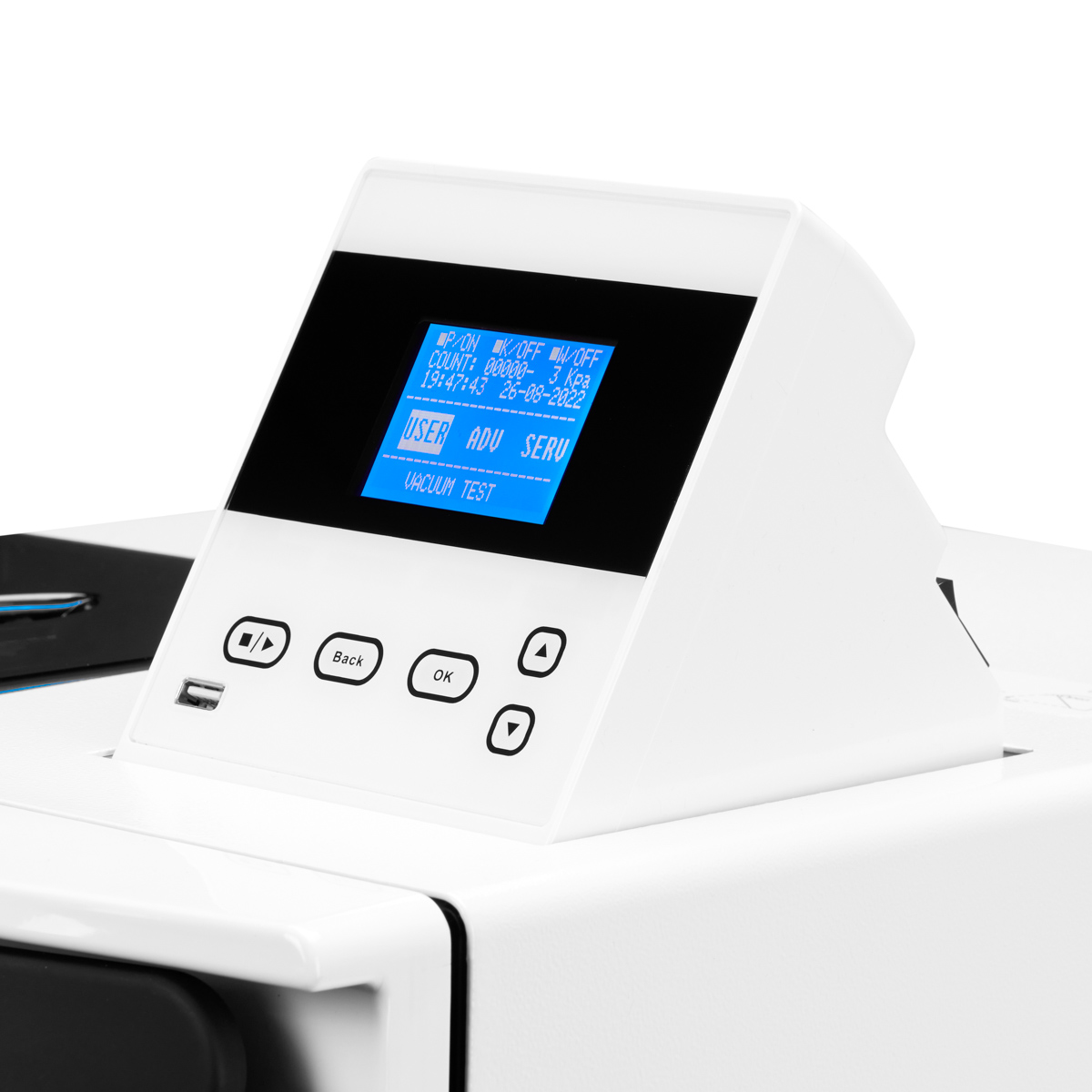

| LCD Display | Indicates time, temperature, pressure, and cycle progress. |
| Easy and efficient operation | The intuitive menu allows you to quickly select the program or set parameters, and the friendly interface is in English. |
| 10 automatic programs | 7 sterilization programs, 2 test programs; Bowie & Dick and Vacuum test, and autoclave cleaning program. |
| User Program | The autoclave allows you to define your own sterilization program and set all parameters. |
| Cleaning program | Intended for autoclave cleaning. Especially recommended when the message "CLEANING REQUIRED" appears. |
| USB port | Digitally save data to a flash drive and don't worry about losing or damaging valuable evidence you need. |
| Hotkey function | The last sterilization program executed will be remembered and easily accessible when the autoclave is turned on. |
| Autostart function | With this function, you will run the appropriate program at a pre-set time. You can set a delayed start of the program to either a specific date and time or any number of hours later. |
| Preheat function | When this feature is enabled, the machine preheats before any program or parameters are set. |
| Keep Warm Function | The autoclave will heat the chamber and activate the steam generator to maintain a constant warm temperature (max 8 hours). Thanks to this, it is possible to shorten the execution time of each sterilization cycle. |
| Built-in tanks for clean and used water | Each container has a capacity of 2.5 liters. The clean water tank is designed for distilled or deionized water used for sterilization. The presence of a used water tank means that we do not need to remember about an external container. The used (and clean) water drain is on the front of the machine. |
| Self-diagnosis system | Effective protection against damage. |

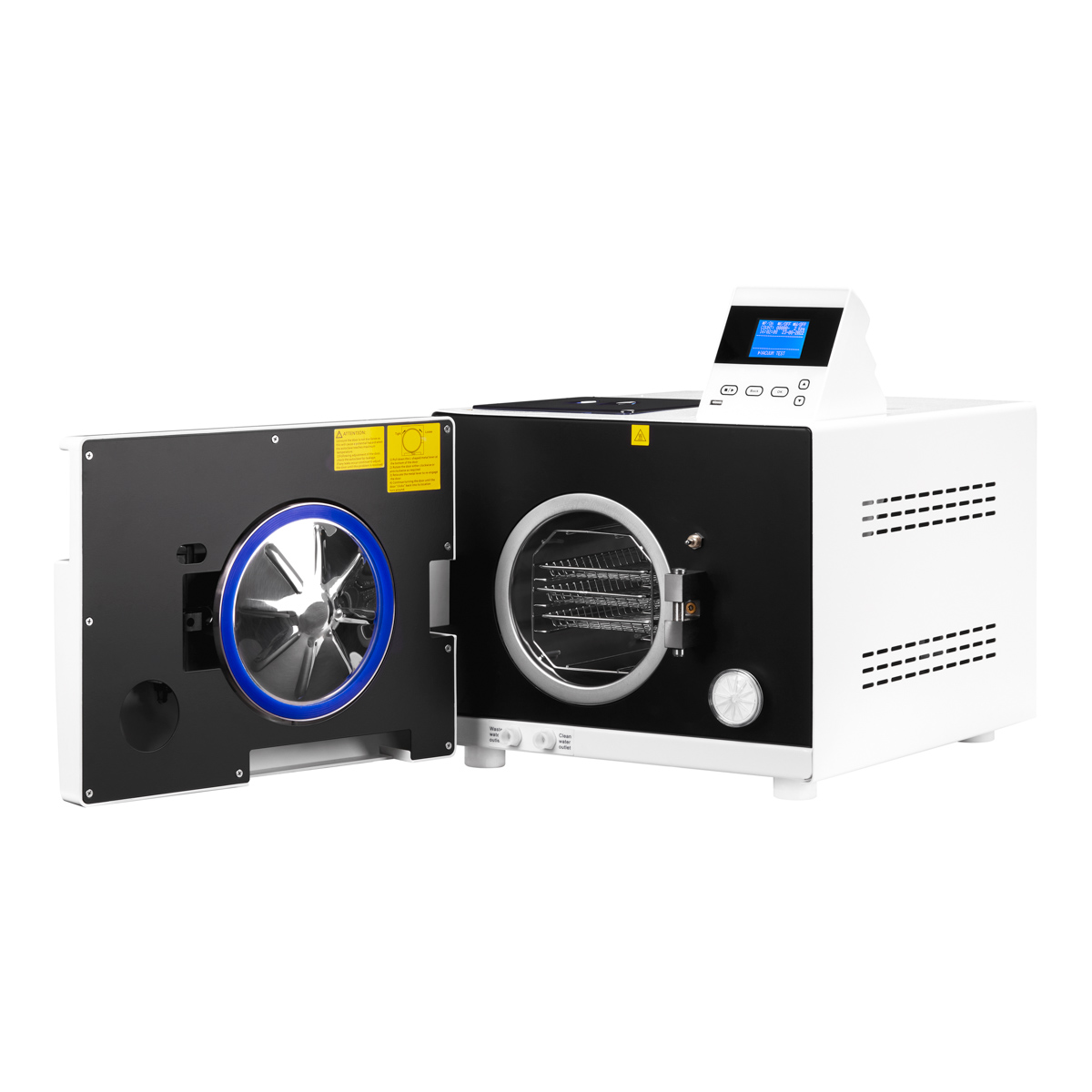

| The 304-grade stainless steel chamber | This makes it highly durable and more aesthetic and testifies to the high quality of the device. |
| Double door lock | Advanced mechanical and electronic door security system. |
| Meets the sanitary & epidemiological requirements | The autoclave meets international standards. |
| High-quality bacterial filter | Removable every 150 cycles, filters are available in our store. |
| Technical Passport | The offer includes a technical passport worth €61,50. |
| Warranty | 36 months warranty |
Technical data:
| Certificates and standards | CE 1023, ISO 13485, BS EN 13060:2014+A1:2018 |
| Power | 2.4 KW |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Maximum work temperature | 137 ℃ |
| Maximum work pressure | 0,21-0,23 MPa |
| Design pressure | -0,1 / 0,27 MPa; |
| User program | All parameters |
| Time control | 4-60 min |
| Drying time | 1-25min |
| Pressure times | 1-10 times |
| Automatic programs | - 134 ° C Solid - 134 ° C Porous - 134 ° C Concave - 121 ° C Solid - 121 ° C Porous - 121 ° C Concave - 135 ° C Prions - Autoclave cleaning - Vacuum test - Bowie & Dick / Helix Test |
| Chamber capacity | 23 L |
| Box dimensions | 75 cm x 58 cm x 50 cm |
| Device dimensions | 65 cm x 52 cm x 42 cm |
| Chamber dimensions | ⌀ 25 cm; depth. 40 cm |
| Chamber material | Stainless steel 304-grade |
| Net weight | 53.5 kg |
| Weight with packaging | 61 kg |

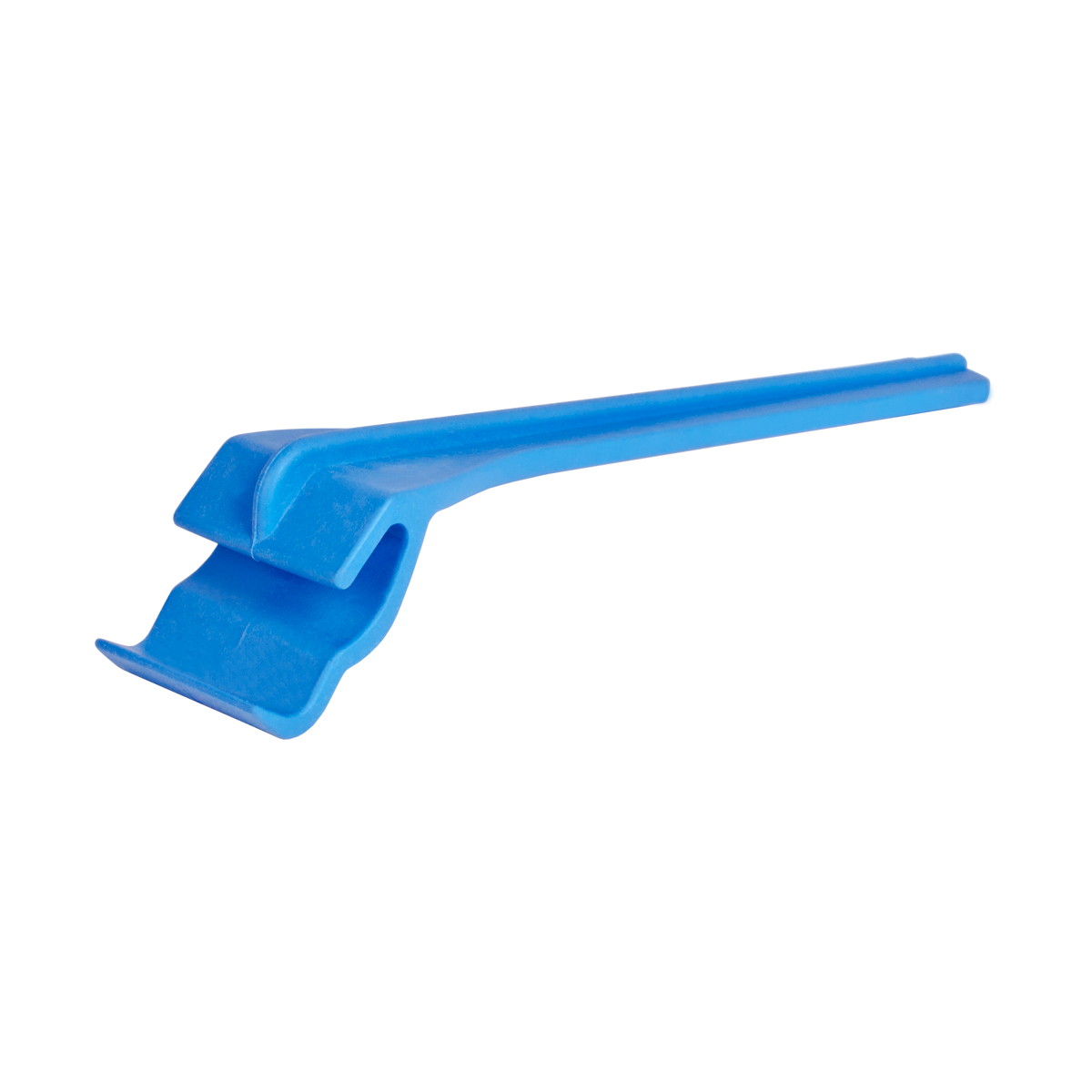

The set includes an autoclave, drain hose, 3 trays, power cord, tray stand, holder for removing trays, fuse, manual in English, and technical passport.
